Promotional price

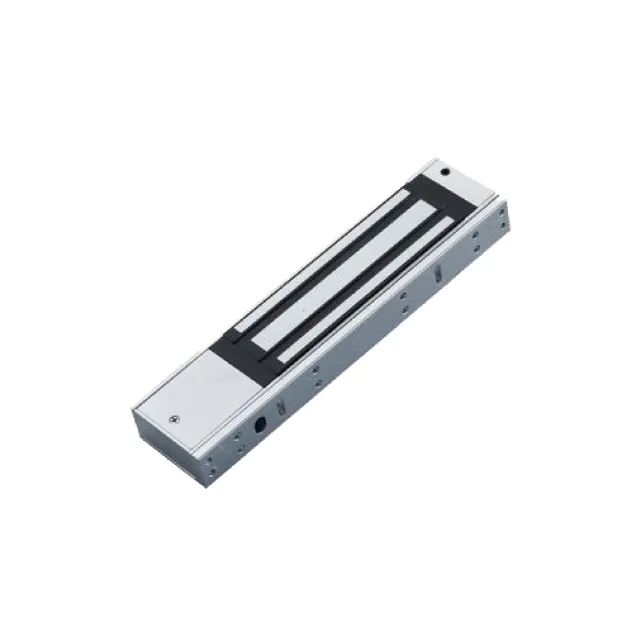

EM Lock | CM-280H
$122.00$67.00Prices in Singapore dollars.
CM-280H
- Lock body: 250*56*29 ±2mm
- Iron plate: 158*43*11 ±2mm
- Interface:12V, GND, NO;COM, NC
- Operating Voltage:12V/24V
- Operating Current:12V,420mA ± 10%; 24V,210mA ± 10%
Categories: Access Control · Door Accessories · Door Accessories
Overview.
Lock body: 250*56*29 ±2mm Iron plate: 158*43*11 ±2mm
Interface:12V, GND, NO;COM, NC
Operating Voltage:12V/24V
Operating Current:12V,420mA ± 10%; 24V,210mA ± 10%
Tensile Force Range:250kg±10kg
Gross Weight:1.8kg
Datasheet
